G6D-1A-ASI is a relay produced by Panasonic. It is characterized by its small size and light weight, and can meet the needs of high-density installation. The relay can withstand 5A of AC and 30V of DC, and has a switch life of up to 300,000 times.

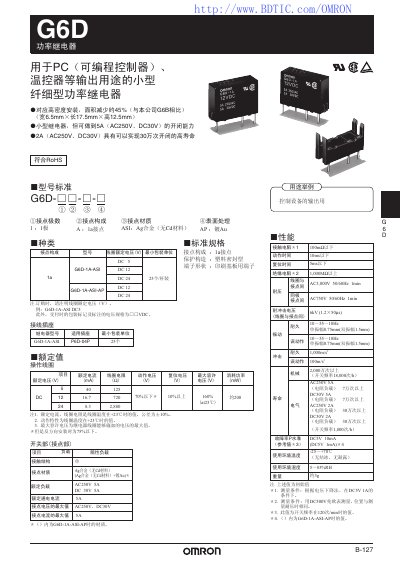

The Omron G6D power relay handbook provides detailed electrical and mechanical specifications for the G6D series, including contact ratings, coil voltage, and environmental limits. It also covers mounting guidelines, wiring terminal information, and recommended installation practices.
Additional sections describe performance testing results, durability data, and international certification compliance (UL, CSA, EN/IEC). The document includes dimensional drawings and packaging information for the G6D-1A-ASI variants. This manual is written in Chinese.
| Coil voltage | DC24 |
|---|---|
| Contact rating | 5 A AC 250 V / DC 30 V |
| Contact resistance | < 100 mΩ |
| Operation time | < 10 ms |
| Insulation resistance | > 1 000 MΩ |
| Withstand voltage | AC 750 V 50/60 Hz |
| Contact life | > 2 000 000 cycles |
The relay can handle up to 5 A at AC 250 V or DC 30 V.
It is designed for a DC 24 V coil.
The insulation resistance is greater than 1 000 MΩ.
