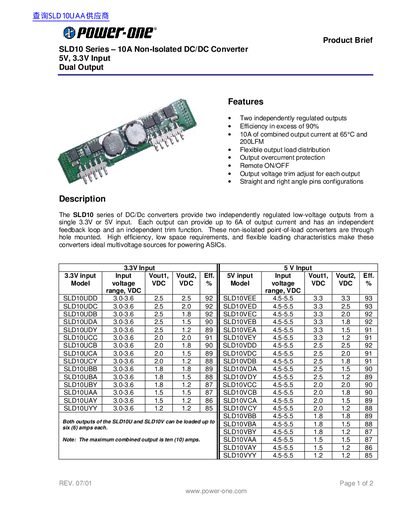

The SLD10 series is a non-isolated DC/DC converter that provides two independently regulated low-voltage outputs from a single 3.3V or 5V input. Each output can provide up to 6A of output current and has an independent feedback loop and trim function. These converters are highly efficient, require minimal space, and have flexible load distribution, making them ideal for powering ASICs.
The SLD10 Series is a non‑isolated point‑of‑load DC/DC converter that accepts either a 3.3 V or 5 V input and delivers two independently regulated low‑voltage outputs. Each output can supply up to 6 A, with a maximum combined output of 10 A, and features independent feedback loops and trim functions.
The device offers high efficiency (over 90 %), remote ON/OFF control, output over‑current protection, and selectable pin configurations (straight or right‑angle). Mechanical dimensions and pin assignments are provided, and optional suffixes allow customization of the part number.
| Maximum combined output current | 10 A |
|---|---|
| Maximum output current per channel | 6 A |
| Efficiency | 92‑93 % |
Each output can provide up to 6 A of current.
The converters achieve efficiency in excess of 90 %, with typical values of 92‑93 % depending on the part number.
Yes, the device is offered with straight pins (standard) or right‑angle pins, the latter indicated by an “R” suffix on the part number.
