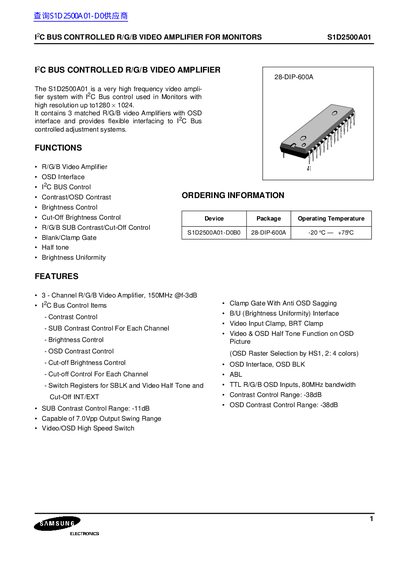

The S1D2500A01 is a very high frequency video amplifier system with I2C Bus control used in Monitors with high resolution up to 1280 × 1024. It contains 3 matched R/G/B video Amplifiers with OSD interface and provides flexible interfacing to I2C Bus controlled adjustment systems.
The S1D2500A01 is a high‑frequency, C‑Bus controlled R/G/B video amplifier designed for monitors with resolutions up to 1280 × 1024. It integrates three matched video channels with OSD interface and offers flexible C‑Bus adjustment.
The document includes functional descriptions, a block diagram, detailed pin configuration tables, electrical characteristics, and performance graphs such as output voltage versus frequency and brightness‑uniformity curves.
| Channel count and bandwidth | 3‑Channel R/G/B, 150 MHz @‑3 dB |
|---|---|
| Contrast control range | -38 dB |
| OSD contrast control range | -38 dB |
| SUB contrast control range | -11 dB |
| Output swing range | 7.0 Vpp |
| TTL OSD input bandwidth | 80 MHz |
The amplifier is capable of a 7.0 Vpp output swing range.
The contrast control can be adjusted from –38 dB.
