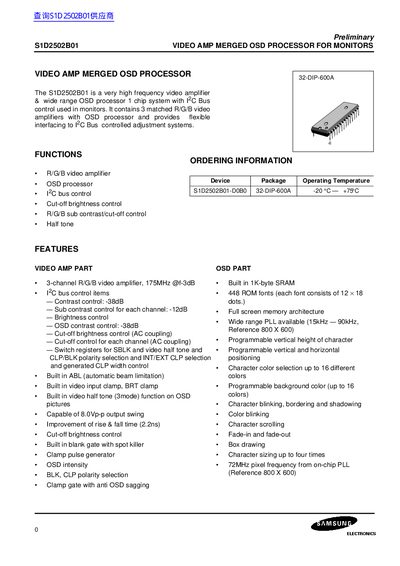

s1d2502b01 is a very high frequency video amplifier & wide range osd processor 1 chip system with i2c bus control used in monitors.
The S1D2502B01 is a high‑frequency video amplifier and wide‑range OSD processor chip system with I²C bus control, intended for monitor applications. It integrates three matched R/G/B video amplifiers, an OSD processor, and a variety of control functions such as cut‑off brightness, sub‑contrast, and half‑tone processing.
The document provides detailed functional block diagrams, pin configurations, absolute maximum ratings, electrical characteristics, and ROM font information, enabling designers to integrate the device into display systems and to configure its I²C‑controlled features.
| Video amplifier bandwidth | 175 MHz @‑3 dB |
|---|---|
| Operating temperature range | -20 °C to +75 °C |
| Supply voltage (VCC) range | 11.4 V to 12.6 V (typical), max 13.2 V |
| Maximum supply voltage (VCC) | 13.2 V |
| Power dissipation | Not specified (PD‑W) |
The device operates from –20 °C to +75 °C.
The maximum VCC rating is 13.2 V.
It contains three matched R/G/B video amplifiers.
