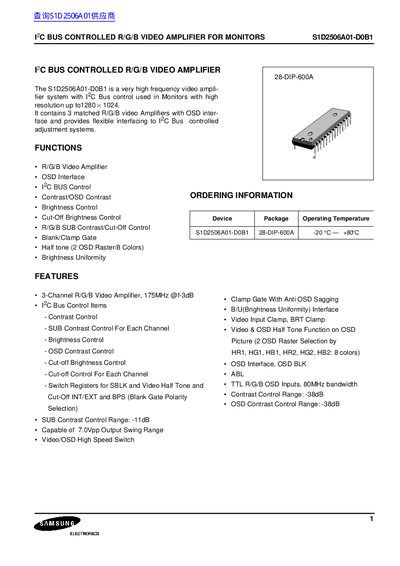

S1D2506A01-D0B1 is a very high frequency video amplifier system with I2C Bus control used in Monitors with high resolution up to 1280 × 1024. It contains 3 matched R/G/B video Amplifiers with OSD inter- face and provides flexible interfacing to I2C Bus controlled adjustment systems.
The S1D2506A01-D0B1 is a high‑frequency video amplifier system with I2C‑bus control designed for monitors up to 1280 × 1024 resolution. It provides three matched R/G/B video channels, OSD interface, contrast and brightness control, and various cut‑off and blanking functions.
The document contains a block diagram, pin configuration and description tables, absolute maximum ratings, DC electrical characteristics, and detailed control curves for contrast, drive, and OSD contrast. It also lists the ABL and brightness‑uniformity characteristics and provides wiring and I²C register information.
| Maximum Supply Voltage | 13.2 V |
|---|---|
| Operating Temperature Range | -20 °C to +80 °C |
| Power Dissipation | 2.0 W |
| Contrast Control Range | -38 dB |
| OSD Contrast Control Range | -38 dB |
| Video Output High Voltage (VOH) | 6.2 V to 9.0 V |
The device operates from –20 °C to +80 °C.
The maximum supply voltage for VCC1/2/3 is 13.2 V.
Contrast can be adjusted from –38 dB to +0 dB.
The high‑level video output voltage ranges from 6.2 V to 9.0 V.
