The MFKDSP/ 4-5,08 is a PC terminal block from the German company PHOENIX CONTACT. It has a nominal current of 12A, a nominal voltage of 250V, a pitch of 5.08mm, a pin count of 4, a spring-cage connection type, a soldering assembly, a 45° conductor/PCB connection direction, and a green color.

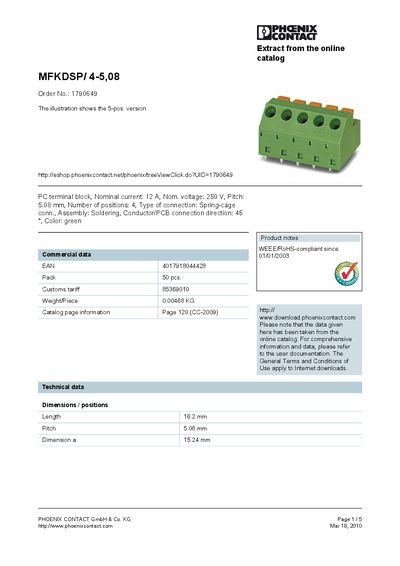

The handbook describes the MFKDSP/ 4-5,08 terminal block, a 4‑position spring‑cage connector with a 5.08 mm pitch. It lists nominal current (12 A), nominal voltage (250 V), dimensions, material data, and compliance notes.
Additional sections cover certification approvals (CSA, CUL, UL), accessory marker cards, drawing diagrams, and contact information for Phoenix Contact headquarters in Germany.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 4 |
| Connection type | Spring‑cage |
| Assembly method | Soldering |
| Color | green |
The nominal current rating is 12 A.
The pitch is 5.08 mm.
It has 4 positions.
