FK-MC 0,5/ 5-ST-2,5 is a 5-position plug component from PHOENIX CONTACT with a nominal current of 4 A, a nominal voltage of 100 V, a pitch of 2.5 mm and a spring-cage connection.
The FK-MC 0,5/5-ST-2,5 is a green‑colored spring‑cage terminal block with a 2.5 mm pitch and five positions. It is rated for 4 A nominal current and 100 V nominal voltage, and complies with RoHS/WEEE regulations.

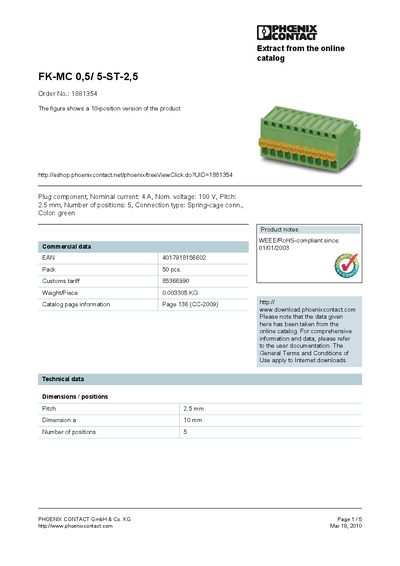

The document provides commercial information, detailed technical specifications, accessory part numbers, certification listings, and a wiring diagram. Contact details for Phoenix Contact are included on the final page.
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 100 V |
| Pitch | 2.5 mm |
| Number of positions | 5 |
| Weight per piece | 0.003305 KG |
| EAN | 4017918156602 |
| Rated voltage (III/2) | 125 V |
| Certifications | CB, CUL, GOST, UL, VDE-PZI |
The connector is rated for a nominal current of 4 A.
It has five positions.
The terminal pitch is 2.5 mm.
Each piece weighs 0.003305 kg.
