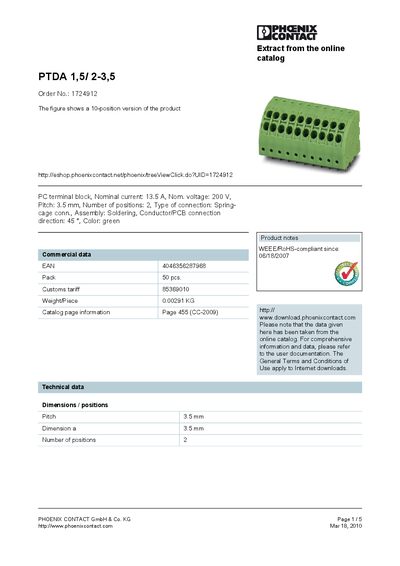

This is a pdf file of PTDA 1,5/ 2-3,5. It contains detailed information about the product, such as nominal current, nominal voltage, pin spacing, product color, etc.
The PTDA 1,5/2-3,5 is a compact 2‑position terminal block with a 3.5 mm pitch, designed for solder‑on mounting. It is rated for 13.5 A nominal current and 200 V nominal voltage, and complies with RoHS and WEEE regulations.
The handbook provides commercial data, detailed technical specifications, dimensional drawings, derating diagrams, and certification information (CUL, UL). It also lists part numbers, packaging details, and contact information for Phoenix Contact.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 200 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Weight per piece | 0.00291 kg |
| EAN | 4046356287968 |
| RoHS compliance date | 06/18/2007 |
The terminal block is rated for a nominal current of 13.5 A.
It has 2 positions.
The pitch is 3.5 mm.
Yes, it has been RoHS compliant since June 18 2007.
