MC 1,5/ 5-STF-3,5 is a connector from PHOENIX CONTACT. The connector has a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.5 mm, a screw connection type and a green colour.
The MC 1,5/5-STF-3,5 is a green‑colored plug component with a screw‑connection design, intended for wiring with up to 1.5 mm² conductor cross‑section. It complies with WEEE/RoHS regulations and is supplied in packs of 50 pieces.

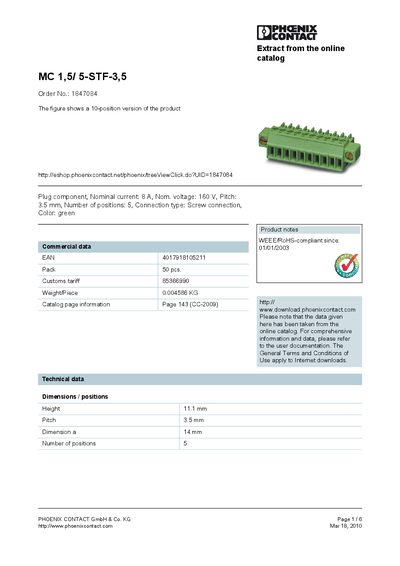

Technical data include dimensions, electrical ratings, and approved certifications. The sheet also lists compatible accessories such as marker pens, screwdriver tools, and related header variants.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Height | 11.1 mm |
| Weight per piece | 0.004586 kg |
| EAN | 4017918105211 |
| WEEE/RoHS compliance date | 01/01/2003 |
The nominal current is 8 A.
It has 5 positions.
The pitch is 3.5 mm.
The height is 11.1 mm.
