PT 1,5/ 6-5,0-H is a PC terminal block from PHOENIX CONTACT. It has a rated current of 17.5A, a rated voltage of 250V, a pitch of 5mm, 6 positions, a screw connection, a soldering assembly, a 0° conductor/PCB connection direction, and a green color. It is also possible to connect a 1.5mm² conductor with a ferrule, but this will reduce the rated voltage or pollution degree/surge category.

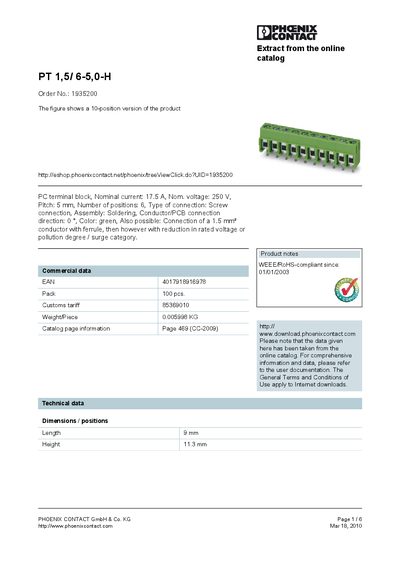

The PT 1,5/6-5,0-H is a 5 mm pitch terminal block designed for screw connection and soldering, suitable for up to 17.5 A and 250 V. It is offered in a 6‑position version, with a 10‑position illustration included in the handbook.
The sheet provides detailed specifications such as dimensions, weight, electrical ratings, tightening torque, and approved certifications. It also lists compatible accessories, tools, and drawing references for installation and derating.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Length | 9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.005998 kg |
| EAN | 4017918916978 |
The terminal block is rated for a nominal current of 17.5 A.
It has six positions.
The pitch is 5 mm.
