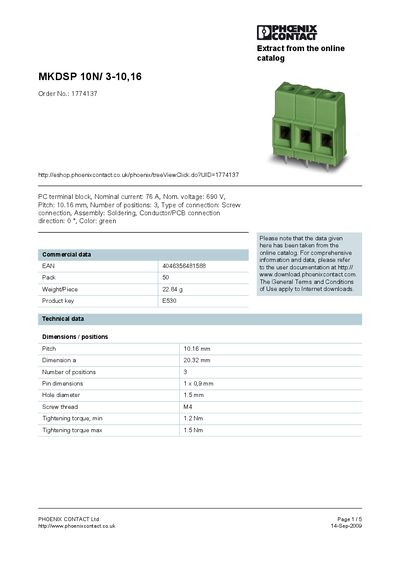

This document provides technical and commercial data for the PC terminal block MKDSP 10N/ 3-10,16 from PHOENIX CONTACT Ltd, including nominal current, nominal voltage, and type of connection.
The MKDSP 10N/3-10,16 is a screw‑connection terminal block designed for 76 A nominal current and 690 V nominal voltage. It features a 10.16 mm pitch, three positions, and a green housing.
The sheet lists detailed technical data such as dimensions, tightening torque, material ratings, certifications, and compatible accessories, along with drawing references and contact information for Phoenix Contact.
| Nominal current | 76 A |
|---|---|
| Nominal voltage | 690 V |
| Pitch | 10.16 mm |
| Number of positions | 3 |
| Screw thread | M4 |
| Tightening torque (min) | 1.2 Nm |
| Tightening torque (max) | 1.5 Nm |
| Dimension a | 20.32 mm |
| Pin dimensions | 1 × 0.9 mm |
| Hole diameter | 1.5 mm |
| Certification | CUL, UL |
It is rated for a nominal current of 76 A.
The terminal block provides three positions.
The minimum tightening torque is 1.2 Nm and the maximum is 1.5 Nm.
The pitch is 10.16 mm.
