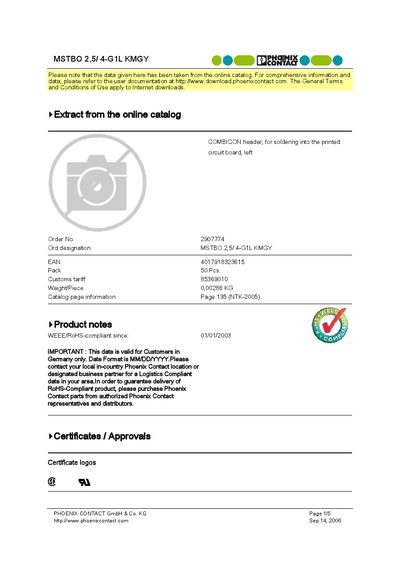

This is a COMBICON header product manual, which is manufactured by PHOENIX CONTACT, the model number is MSTBO 2,5/ 4-G1L KMGY, the rated voltage is 300V and the rated current is 10A, which is in compliance with WEEE/RoHS
The MSTBO 2,5/4-G1L KMGY is a combicon header terminal block designed for soldering onto printed circuit boards. It is rated for a nominal voltage of 300 V and a nominal current of 10 A (12 A in some versions) and complies with RoHS requirements since 01/01/2003.
The sheet lists the standard pack size of 50 pieces, the order number 2907774, and various accessories such as a mounting flange, keying caps, marker pens, marker cards, and a coding element. Contact details for Phoenix Contact Germany are also provided.
| Nominal voltage | 300 V |
|---|---|
| Nominal current | 10 A |
| Nominal current (alternative) | 12 A |
| Weight per piece | 0.00286 kg |
| Order number | 2907774 |
| EAN | 4017918323615 |
| Pack size | 50 pcs |
| Customs tariff | 85369010 |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal voltage of 300 V.
A standard pack contains 50 pieces.
The order number is 2907774.
