This document introduces the product FKC 2,5/ 3-STF-5,08 from PHOENIX CONTACT GmbH & Co. KG. The product is a plug component with a nominal current of 12 A, a nominal voltage of 250 V, a pitch of 5.08 mm, 3 positions, and a spring-cage connection type. It is green in color.
The FKC 2,5/3‑STF‑5,08 is a spring‑cage terminal block with three positions, a nominal current of 12 A, nominal voltage of 250 V, and a 5.08 mm pitch. It is supplied in a green housing and is designed for DIN‑rail or direct mounting.

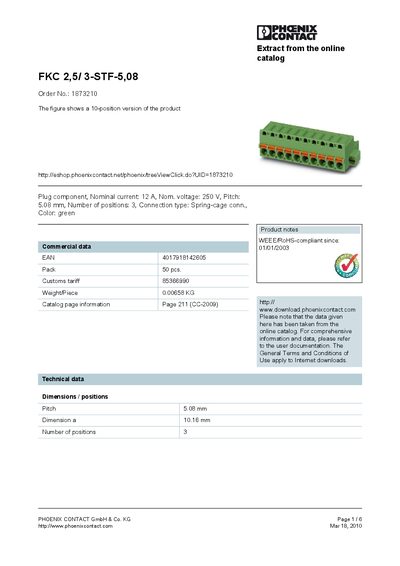

The leaflet lists full technical specifications, dimensions, weight, EAN code, WEEE/RoHS compliance date, and available accessories such as strain‑relief parts, marker cards, and tools. Certification information (UL, CUL, VDE‑PZI, etc.) and ordering details (Order No. 1873210) are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Connection type | Spring‑cage |
| Color | green |
| Weight per piece | 0.00658 kg |
| EAN | 4017918142605 |
| WEEE/RoHS compliance date | 01/01/2003 |
The nominal current is 12 A.
It has three positions.
The pitch is 5.08 mm.
It can be ordered via the Phoenix Contact e‑shop using Order No. 1873210.
