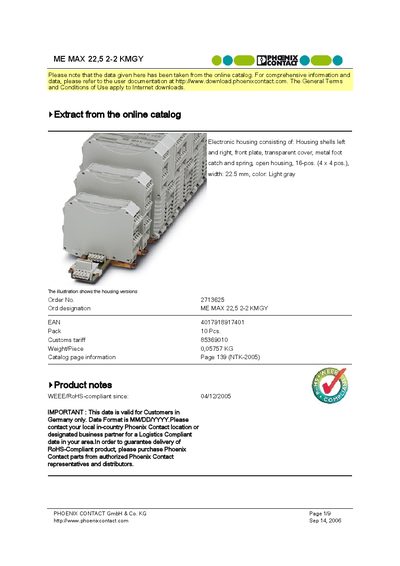

The document describes an electronic housing consisting of housing shells, a front plate, a transparent cover, a metal foot catch and spring, with a width of 22.5mm and a light gray color.
The ME MAX 22.5 2-2 KMGY terminal block features a PA 6.6 housing, gray color and a compact size (22.5 mm width, 99 mm length, 114.5 mm height). It provides 16 positions in a 4 × 4 layout and complies with UL‑94 V0 inflammability class.
The product is supplied in packs of 10 pieces (Order No. 2713625, EAN 4017918917401) and is available with various accessories such as DIN‑rail connectors, cover caps and label sheets. Technical drawings and explosion‑proof diagrams are included for installation reference.
| Housing material | PA 6.6 |
|---|---|
| Color | Gray |
| Width | 22.5 mm |
| Length | 99 mm |
| Constructional height | 114.5 mm |
| Number of positions | 16 |
| Weight per piece | 0.05757 kg |
| Order number | 2713625 |
| Pack size | 10 pcs |
The order number is 2713625.
It provides 16 positions.
The width is 22.5 mm.
Each piece weighs 0.05757 kg.
