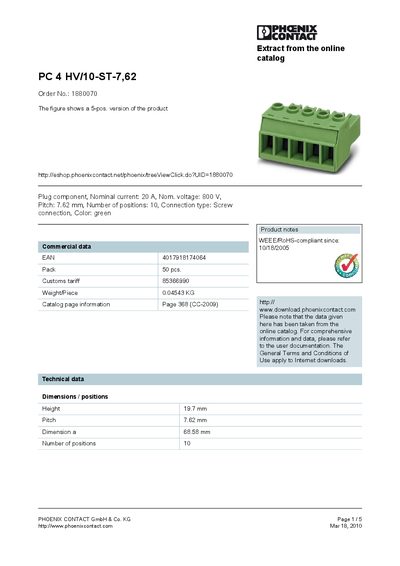

PC 4 HV/10-ST-7,62 is a plug component from PHOENIX CONTACT with a nominal current of 20 A, a nominal voltage of 800 V, a pitch of 7.62 mm, 10 positions, a screw connection and a green color.
The PC 4 HV/10-ST-7,62 is a 10‑position, 7.62 mm pitch screw‑connection terminal block designed for 20 A nominal current and 800 V nominal voltage. The sheet lists its physical dimensions (height 19.7 mm, overall length 68.58 mm) and commercial details such as EAN 4017918174064 and weight of 0.04543 kg per piece.
Additional sections describe available accessories (marker cards, screwdriver, plug/adapter), certification approvals (CSA, CUL, UL, GOST) and a derating curve for temperature. Contact and ordering information for Phoenix Contact is also provided.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 800 V |
| Pitch | 7.62 mm |
| Number of positions | 10 |
| Height | 19.7 mm |
| Overall length (dimension a) | 68.58 mm |
| Weight per piece | 0.04543 kg |
| EAN | 4017918174064 |
| WEEE/RoHS compliance date | 10/18/2005 |
The terminal block is rated for a nominal current of 20 A.
It has 10 positions.
The pitch is 7.62 mm.
It is approved by CSA, CUL, UL and GOST.
