Key facts
- Brand
- Phoenix Contact
- Model
- MKDSP 10N
- Category
- Other device
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-11
Start here

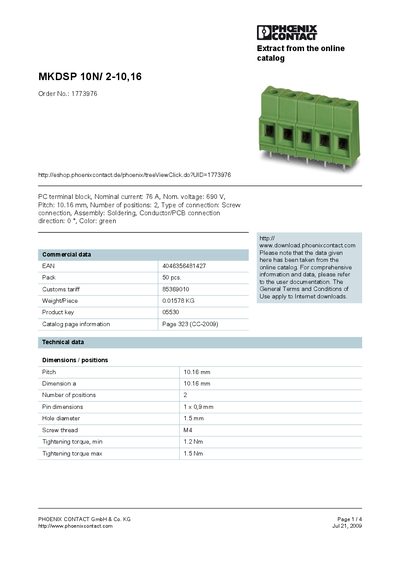

Phoenix Contact MKDSP 10N/2-10,16 Product Leaflet
Product Leaflet 4 pages · 77 KB · EN
The MKDSP 10N/2-10,16 terminal block is a green‑colored, screw‑connection terminal with a 10.16 mm pitch and two positions. It is designed for soldering assembly and can handle a nominal current of 76 A at 690 V.
The document provides detailed technical data such as tightening torque (1.2 Nm–1.5 Nm), hole diameter, screw thread size, and certification information (CUL, UL). It also lists compatible accessories, tools, and ordering information.
Phoenix Contact MKDSP 10N specifications
| Nominal current | 76 A |
|---|---|
| Nominal voltage | 690 V |
| Pitch | 10.16 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Weight per piece | 0.01578 kg |
All Phoenix Contact MKDSP 10N documents by type
Product Leaflet 2
Questions answered in these manuals
What is the nominal current rating of the MKDSP 10N/2-10,16 terminal block?
The terminal block is rated for a nominal current of 76 A.
What is the pitch of the MKDSP 10N/2-10,16 terminal block?
The pitch is 10.16 mm.
What is the nominal current rating of the MKDSP 10N/3-10,16?
It is rated for a nominal current of 76 A.
How many positions does the terminal block have?
The terminal block provides three positions.
