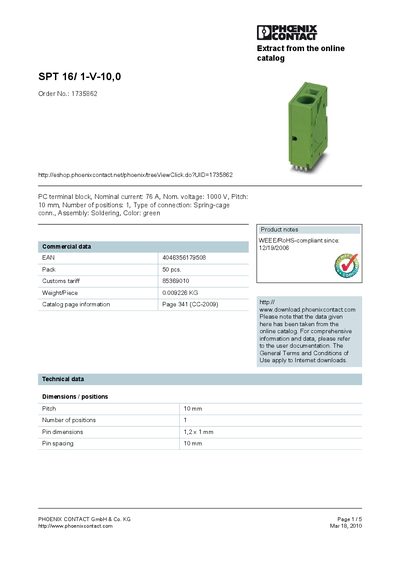

This is a terminal block with the model SPT 16 / 1-V-10,0, a rated current of 76 A, a rated voltage of 1000 V, a pitch of 10 mm, a spring cage connection, a soldering assembly, and a green color.
The SPT 16/1-V-10,0 is a spring‑cage terminal block designed for 76 A nominal current and 1000 V nominal voltage. It features a 10 mm pitch, green housing, and is intended for soldered assembly.
The sheet provides detailed technical data such as weight, EAN, certifications (UL, CUL), and compliance information (RoHS since 12/19/2006). For full product information see the online catalog or the manufacturer’s website.
| Nominal current | 76 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 10 mm |
| Number of positions | 1 |
| Weight per piece | 0.009226 kg |
| EAN | 4046356179508 |
| Color | green |
| Assembly method | Soldering |
| Connection type | Spring‑cage |
| RoHS compliance date | 12/19/2006 |
The terminal block is rated for a nominal current of 76 A.
It has one position.
The pitch is 10 mm.
Yes, it has been RoHS compliant since 12/19/2006.
