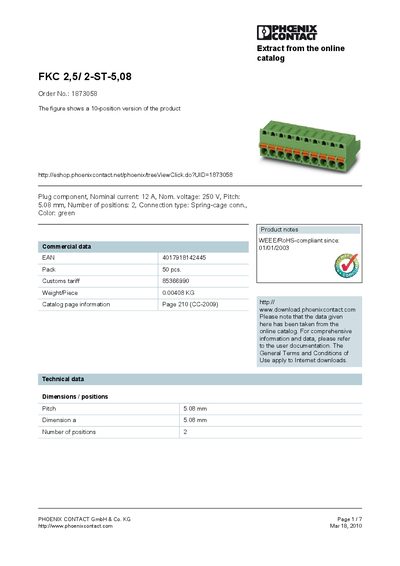

This is a product manual from PHOENIX CONTACT. It introduces the features and characteristics of the product FKC 2,5/ 2-ST-5,08, including the product's specifications, model, color, packaging, weight, voltage, and current.
The FKC 2,5/2-ST-5,08 is a 2‑position terminal block with a 5.08 mm pitch, spring‑cage connection type and green housing. It is designed for nominal currents of 12 A and nominal voltages of 250 V (or 320 V for certain versions).
The document lists detailed technical data, including dimensions, weight, certifications (CB, CUL, GOST, UL, VDE‑PZI), accessories, and drawing information. Ordering details such as the order number (1873058) and EAN (4017918142445) are also provided.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 |
| Connection type | Spring‑cage |
| Color | green |
| WEEE/RoHS compliance date | 01/01/2003 |
| Certifications | CB, CUL, GOST, UL, VDE‑PZI |
The nominal current is 12 A.
The pitch is 5.08 mm.
It is certified according to CB, CUL, GOST, UL and VDE‑PZI.
