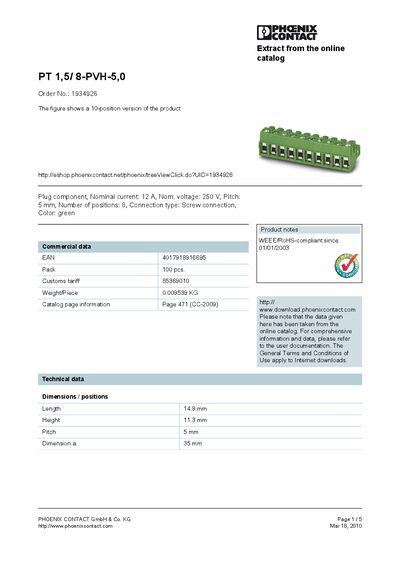

This document provides information about the PT 1,5/ 8-PVH-5,0 plug component produced by PHOENIX CONTACT GmbH & Co. KG. The product is a 10-position plug component with a nominal current of 12A and a nominal voltage of 250V. It features a screw connection and is green in color. The product is WEEE/RoHS-compliant and has dimensions of 14.9mm x 11.3mm x 35mm.
The PT 1,5/8-PVH-5,0 is an 8‑position screw‑connection terminal block designed for 12 A nominal current and 250 V nominal voltage. It features a 5 mm pitch, green housing, and is RoHS‑compliant since 01/01/2003.
The handbook lists detailed dimensions, electrical ratings, tightening torque values, and certification information (UL, CUL, CCA). Ordering details, EAN code, and contact information for Phoenix Contact are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 8 |
| Length | 14.9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.009539 KG |
| WEEE/RoHS compliance date | 01/01/2003 |
| EAN | 4017918916695 |
| Color | green |
| Connection type | Screw connection |
The terminal block is rated for a nominal current of 12 A.
It provides 8 positions for connections.
The pitch between contacts is 5 mm.
