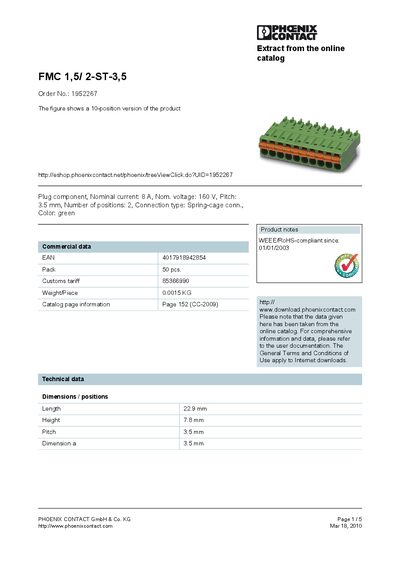

This document describes the features and characteristics of the product FMC 1,5/ 2-ST-3,5 from PHOENIX CONTACT GmbH & Co. KG, including plug component, nominal current, nominal voltage, pitch, number of positions, etc.
The FMC 1,5/2-ST-3,5 is a 2‑position plug component with a 3.5 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. It features a spring‑cage connection, green housing, and compact dimensions (22.9 mm × 7.8 mm). The product complies with WEEE/RoHS regulations since 01/01/2003.
The handbook provides detailed technical data, certification information (UL, CUL), and a range of accessories such as marker pens and self‑adhesive marker cards for labeling. Diagrams and drawings illustrate the component layout, and contact details for Phoenix Contact are included for further support.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Connection type | Spring‑cage conn. |
| Length | 22.9 mm |
| Height | 7.8 mm |
| Weight per piece | 0.0015 kg |
The FMC 1,5/2-ST-3,5 is rated for a nominal current of 8 A.
It has 2 positions.
The component measures 22.9 mm in length, 7.8 mm in height, with a 3.5 mm pitch.
Yes, it has been RoHS‑compliant since 01/01/2003.
