MSTBV 2,5/ 6-GF-5,08 is a connector produced by PHOENIX CONTACT. The connector has a rated current of 12 A, a rated voltage of 250 V, a pitch of 5.08 mm, has 6 contacts, is green in color, and can be installed by soldering.
The MSTBV 2,5/6-GF-5.08 is a green, solder‑type DIN‑rail terminal block with a 5.08 mm pitch and six positions (shown in a 10‑position version). It is rated for 12 A nominal current and 250 V nominal voltage, and complies with RoHS/WEEE regulations.

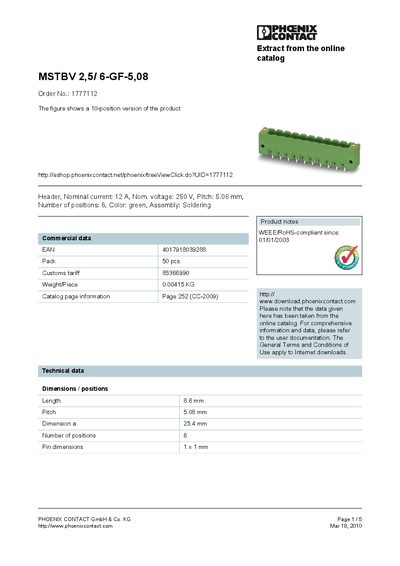

The handbook lists accessories such as keying caps, marker cards, and various plug components, and includes certification details (CB, CSA, CUL, GL, GOST, RS, UL, VDE‑PZI). Dimensional drawings and a drilling plan are also provided.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 6 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.00415 KG |
| Certifications | CB, CSA, CUL, GL, GOST, RS, UL, VDE-PZI |
The terminal block is rated for a nominal current of 12 A.
It supports a nominal voltage of 250 V.
The pitch of the MSTBV 2,5/6-GF-5.08 is 5.08 mm.
The product is certified by CB, CSA, CUL, GL, GOST, RS, UL, and VDE‑PZI.
