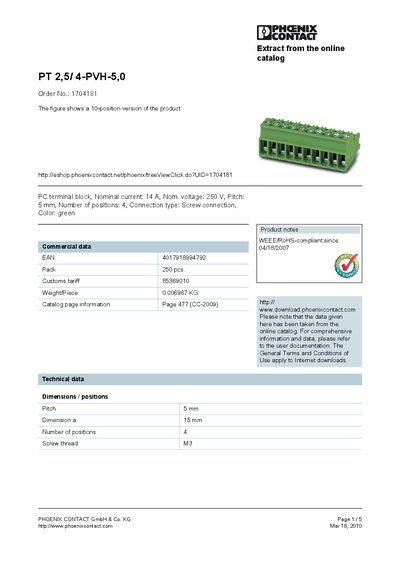

PT 2,5/ 4-PVH-5,0 is a green PC terminal block produced by PHOENIX CONTACT. Its rated current is 14 A, rated voltage is 250 V, pitch is 5 mm, terminal number is 4, and connection type is screw connection.
The PT 2,5/4-PVH-5,0 is a 4‑position screw‑connection terminal block with a 5 mm pitch, rated for 14 A and 250 V. It is supplied in a green housing and complies with RoHS and WEEE regulations.
The sheet provides detailed dimensions, tightening torque values, surge voltage ratings, and certification information (CUL, UL). Additional diagrams show derating curves and connection guidelines.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.006967 KG |
| EAN | 4017918994792 |
The terminal block is rated for 14 A.
The pitch is 5 mm.
Minimum torque is 0.45 Nm and maximum torque is 0.5 Nm.
