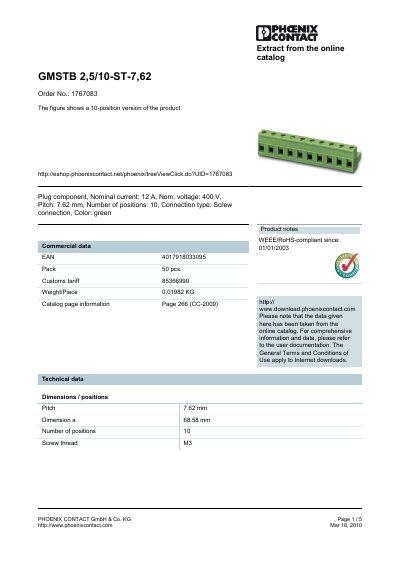

This document describes the features and characteristics of the GMSTB 2,5/10-ST-7,62 product, including plug component, nominal current, nominal voltage, connection type, etc.
The GMSTB 2,5/10-ST-7,62 is a 10‑position plug component with a 7.62 mm pitch, rated for 12 A and 400 V. It features a screw‑type connection, green housing, and complies with EN‑VDE standards.
The sheet also lists accessories, marking options, and certifications such as CB, CSA, CUL, GOST, UL, and VDE‑PZI. Physical dimensions, tightening torque, and weight are provided for installation planning.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 10 |
| Insulating material group | I |
| Rated voltage (III/2) | 630 V |
| Rated surge voltage (III/3) | 6 kV |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Weight per piece | 0.01982 kg |
| Dimension a | 68.58 mm |
The component is rated for a nominal current of 12 A.
The pitch of the plug is 7.62 mm.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
The recommended tightening torque ranges from 0.5 Nm to 0.6 Nm.
