This document is about the product SMKDS 1/10-3,5 from PHOENIX CONTACT GmbH & Co. KG. The product is a PC terminal block with a nominal current of 10A, nominal voltage of 160V, pitch of 3.5mm, 10 positions, screw connection, soldering assembly, conductor/PCB connection direction of 55°, and green color.
The SMKDS 1/10-3,5 is a PC terminal block from Phoenix Contact designed for 10 A and 160 V applications. It features a 3.5 mm pitch, screw‑type connection, and a green housing.

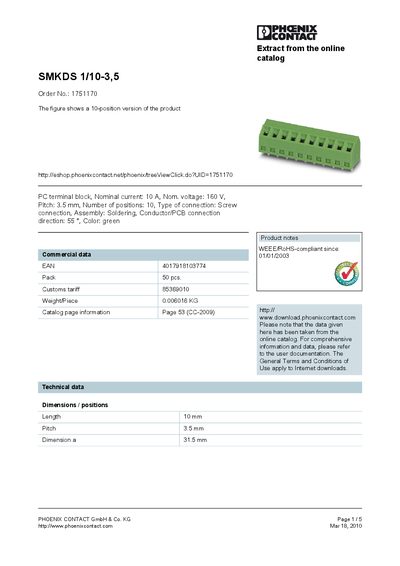

The handbook provides dimensions, electrical ratings, tightening torque values, certifications, and ordering details such as EAN and pack size, together with accessory and tool information.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 10 |
| Type of connection | Screw connection |
| Length | 10 mm |
| Dimension a | 31.5 mm |
| Weight per piece | 0.006016 kg |
It is rated for 10 A.
The terminal block has 10 positions.
The pitch is 3.5 mm.
It is certified by CB, CCA, CSA, CUL, GOST, SEV and UL.
