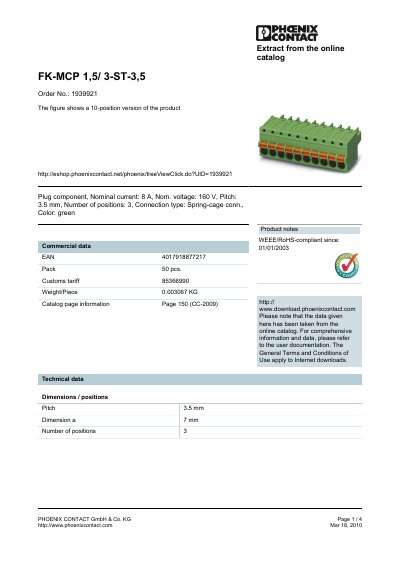

This document introduces the product FK-MCP 1,5/ 3-ST-3,5 from PHOENIX CONTACT GmbH & Co. KG. The product is a plug component with a nominal current of 8A, a nominal voltage of 160V, a pitch of 3.5mm, 3 positions, and a spring-cage connection. It is green in color and complies with WEEE/RoHS requirements.
The FK-MCP 1,5/3-ST-3,5 is a spring‑cage plug component with a 3.5 mm pitch and three positions, designed for industrial electrical connections. It is supplied in green, rated for 8 A nominal current and 160 V nominal voltage, and complies with RoHS and WEEE standards.
The sheet provides detailed technical data such as dimensions, conductor cross‑section limits, insulation material, and certification information (CB, CUL, GOST, UL, VDE‑PZI). It also lists accessories like marker cards and screwdriver tools, as well as commercial details like EAN code and packaging weight.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Weight per piece | 0.003067 kg |
| EAN | 4017918877217 |
| Inflammability class | UL 94 V0 |
| Maximum load current | 8 A (with 1.5 mm² conductor) |
| Conductor cross‑section solid min. | 0.14 mm² |
| Conductor cross‑section solid max. | 1.5 mm² |
The nominal current is 8 A.
The pitch is 3.5 mm.
It is certified by CB, CUL, GOST, UL and VDE‑PZI.
It supports solid conductors up to 1.5 mm².
