This is a PDF document about PHOENIX CONTACT PLH 16/ 4-10-ZF. The product is a PC terminal block with a rated voltage of 1000 V, a pitch of 10 mm, a position number of 4, a connection type of spring-cage connection, an assembly type of soldering, a conductor/PCB connection direction of 0°, and a color of green.
The PLH 16/4-10-ZF is a 4‑position terminal block with a 10 mm pitch, spring‑cage connection and soldering assembly. It is rated for a nominal voltage of 1000 V and is supplied in packs of 50 pieces.

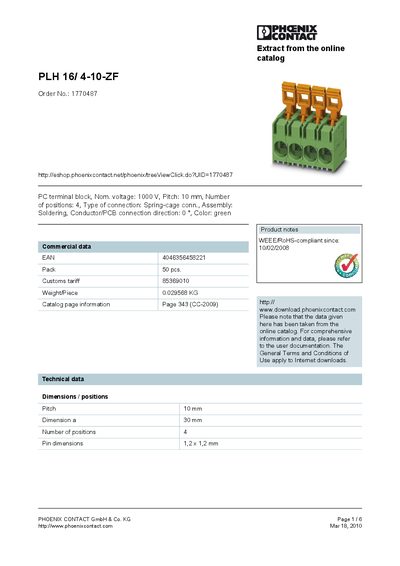

The leaflet contains detailed technical specifications, dimensional drawings, pin spacing, insulating material information, and ordering data, including the order number 1770487 and the manufacturer's address in Blomberg, Germany.
| Nominal voltage | 1000 V |
|---|---|
| Pitch | 10 mm |
| Number of positions | 4 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Weight per piece | 0.029568 kg |
| Pack size | 50 pcs |
| Pin dimensions | 1.2 × 1.2 mm |
| Dimension a | 30 mm |
The nominal voltage is 1000 V.
It has 4 positions.
The pitch is 10 mm.
It uses a spring‑cage connection.
