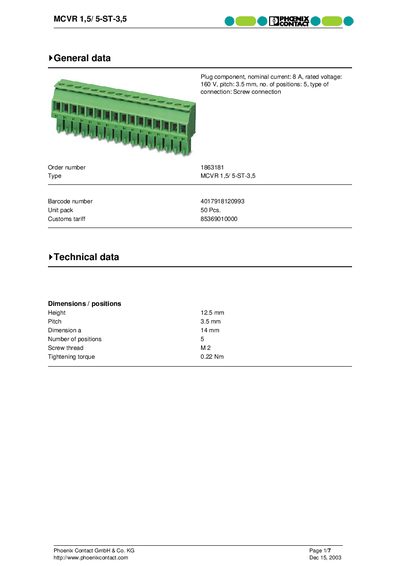

MCVR 1,5/ 5-ST-3,5 is a connector with a nominal current of 8 A, rated voltage of 160 V, pitch of 3.5 mm, number of positions of 5, and screw connection type.
The MCVR 1,5/5-ST-3,5 is a 5‑position screw‑connection terminal block with a 3.5 mm pitch, nominal current of 8 A and rated voltage of 160 V. Its compact design (height 12.5 mm, overall width 14 mm) and M2 screw thread allow easy installation, while a tightening torque of 0.22 Nm ensures reliable connections.
The handbook also lists applicable certificates (UL, CUL), insulating material details, and a range of accessories such as marker pens and cards. Additional related products and contact information for Phoenix Contact are provided for ordering and technical support.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Height | 12.5 mm |
| Overall width (dimension a) | 14 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
It has five positions.
A tightening torque of 0.22 Nm is specified.
The pitch is 3.5 mm.
