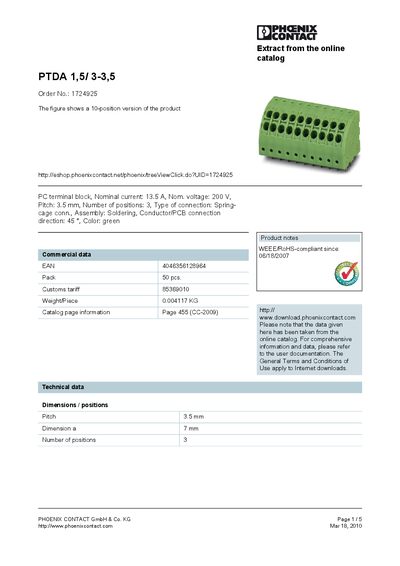

This document is about the product PTDA 1,5/ 3-3,5 from PHOENIX CONTACT GmbH & Co. KG. The product is a PC terminal block with a nominal current of 13.5A, nominal voltage of 200V, pitch of 3.5mm, 3 positions, spring-cage connection type, soldering assembly, conductor/PCB connection direction of 45°, and color green.
The PTDA 1,5/3-3,5 is a compact terminal block from Phoenix Contact designed for soldered PCB connections. It features a 3‑position layout with a 3.5 mm pitch and a spring‑cage contact type.
The handbook provides detailed technical specifications, dimensional drawings, derating diagrams, and certification information such as UL and CUL approvals. It also lists packaging, weight, and compliance data for easy integration into electrical designs.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 200 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB direction | 45° |
| Weight per piece | 0.004117 kg |
| Pack size | 50 pcs |
The nominal current rating is 13.5 A.
It has three positions.
The pitch is 3.5 mm.
