The product is MC 1,5/ 6-STF-3,5, which is a plug component of PHOENIX CONTACT company. Its rated current is 8 A, rated voltage is 160 V, pitch is 3.5 mm, it has 6 slots, the connection type is screw connection and the color is green.
The MC 1,5/6-STF-3,5 is a 6‑position screw‑connection terminal block with a 3.5 mm pitch, rated for 8 A and 160 V. It is supplied in a green housing and includes commercial data such as EAN 4017918052188 and a weight of 0.00524 kg per piece.

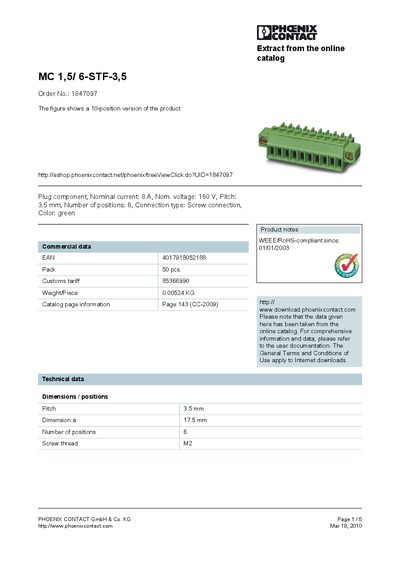

The sheet lists tightening torque values (0.22 Nm min, 0.25 Nm max), surge voltage ratings, and various certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI). Accessories, tools, and related product numbers are also provided, along with a dimensioned drawing of the block.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.00524 kg |
| EAN | 4017918052188 |
| Dimension a | 17.5 mm |
The terminal block is rated for a nominal current of 8 A.
It has six positions.
The recommended tightening torque is 0.22 Nm minimum and 0.25 Nm maximum.
