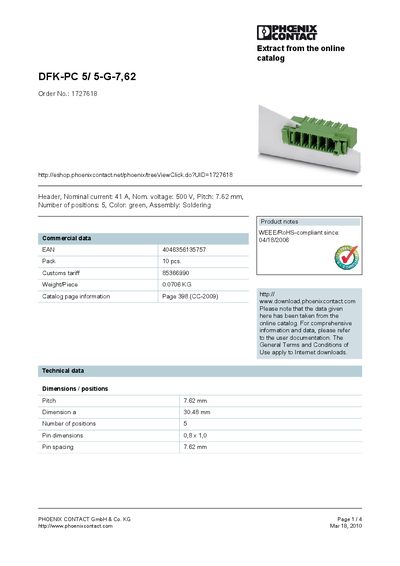

The DFK-PC 5/ 5-G-7,62 is a connector from PHOENIX CONTACT with a nominal current of 41 A, a nominal voltage of 500 V, a pitch of 7.62 mm, 5 pins, and a green color. It is assembled by soldering.
The DFK-PC 5/5-G-7,62 is a 5‑position, green‑colored connector with a 7.62 mm pitch. It is designed for soldering assembly and complies with RoHS since April 2006. The sheet provides key electrical ratings, mechanical dimensions, and packaging details.
Technical data include a nominal current of 41 A, nominal voltage of 500 V, and various surge voltage ratings. Mechanical specifications such as pin spacing, hole diameter, and sheet‑metal cutouts for snap‑on or screw connections are also listed, along with ordering information and the manufacturer's contact details.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 800 V |
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Color | green |
| Weight per piece | 0.0706 kg |
| Inflammability class | UL 94 V0 |
| Insulating material | PA |
| RoHS compliance date | 04/18/2006 |
The connector is rated for a nominal current of 41 A.
It has five positions.
Yes, it has been RoHS compliant since 04/18/2006.
