PT 1,5/ 8-5,0-H is a connector produced by PHOENIX CONTACT. It has a rated current of 17.5 A, a rated voltage of 250 V, a pin spacing of 5 mm, 8 pins and a screw connection.
The PT 1,5/8-5,0-H is a 5 mm pitch, 8‑position screw‑connection terminal block rated for 17.5 A and 250 V. It is designed for soldering assembly and can accommodate a 1.5 mm conductor with a ferrule, with a reduction in rated voltage or pollution degree.

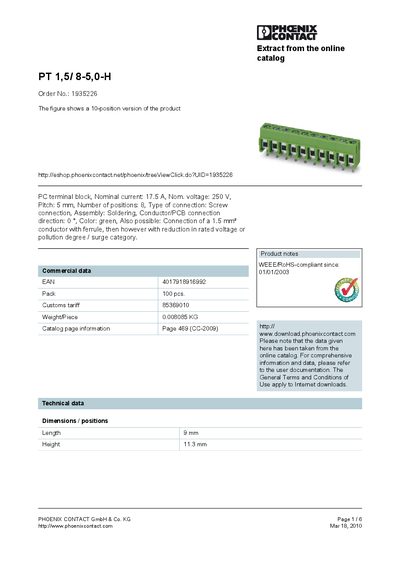

The leaflet provides commercial data, dimensions, weight, certifications (CUL, UL, CCA, SEV), accessories such as marker cards and screwdrivers, and a derating diagram for current capacity. Contact information for Phoenix Contact and ordering details are also included.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 8 |
| Length | 9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.008085 kg |
| EAN | 4017918916992 |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 17.5 A.
It has 8 positions.
The pitch is 5 mm.
Each unit weighs 0.008085 kg.
