This is a 5-pin PC terminal with a rated current of 12A, rated voltage of 250V, soldering assembly, 45° conductor/PCB connection direction, and green color.

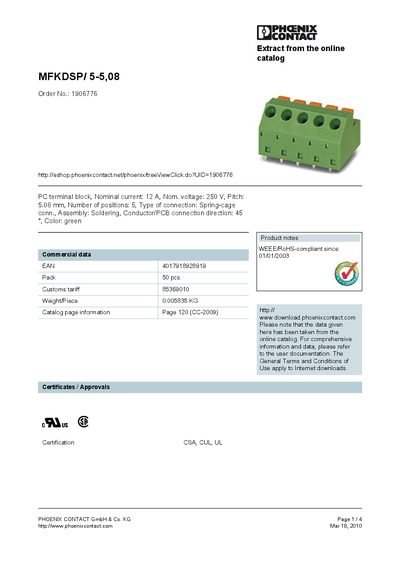

The MFKDSP/5-5,08 is a PC terminal block with a nominal current of 12 A, nominal voltage of 250 V, 5.08 mm pitch, and five positions. It uses a spring‑cage connection, is assembled by soldering, and the conductor direction is 45°, with a green housing.
The leaflet lists accessories such as marker cards and reducing plugs, provides certification information (CSA, CUL, UL), and includes ordering details, weight (0.005835 kg per piece), and pack size (50 pcs). Diagrams for drilling and solder pad geometry are also provided.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 5 |
| Connection type | Spring‑cage |
| Assembly method | Soldering |
| Conductor direction | 45° |
| Color | Green |
| Weight per piece | 0.005835 kg |
The nominal current is 12 A.
It has five positions.
The pitch is 5.08 mm.
