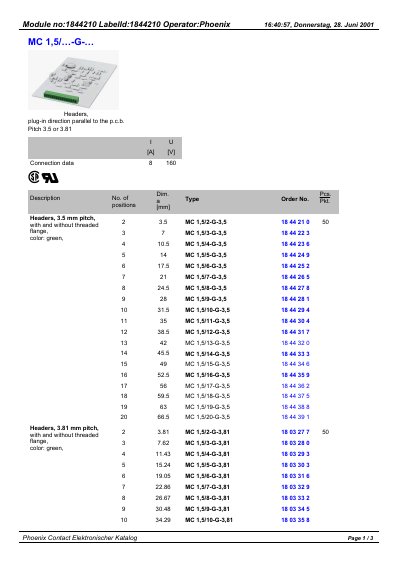

This document describes a header connector module with options for 3.5mm and 3.81mm pitch, available in 2 to 20 positions, color is green.
The MC 1.5 series from Phoenix Contact provides compact header connectors with either 3.5 mm or 3.81 mm pitch. Variants are offered with 2 to 20 positions and are supplied in green housing, with optional threaded flanges.
Technical data include a rated voltage of 160 V, nominal current of 2.5 A, surge voltage category III, PBT insulation material (UL‑94 V0) and detailed dimensional drawings, as well as accessory parts such as coding sections and marker cards. This manual is written in German.
| Pitch | 3.5 mm or 3.81 mm |
|---|---|
| Number of positions | 2 – 20 |
They are offered with either a 3.5 mm or a 3.81 mm pitch.
The MC 1,5/2‑G‑3,5 variant has 2 positions.
