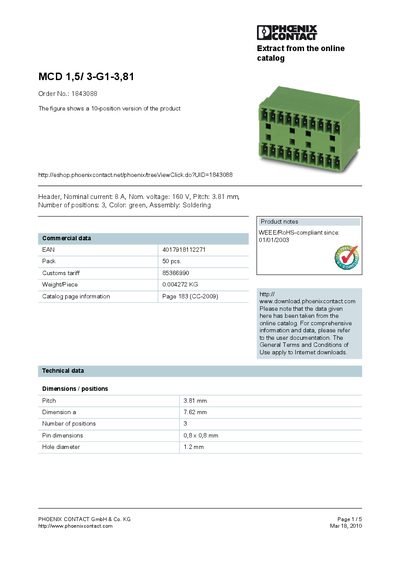

MCD 1,5/ 3-G1-3,81 is a connector produced by PHOENIX CONTACT company. The rated current is 8A, the rated voltage is 160V, the lead spacing is 3.81mm, there are 3 pins, the color is green, and it can be installed by soldering.
The MCD 1,5/3-G1-3,81 is a green, 3‑position terminal block with a 3.81 mm pitch, rated for 8 A and 160 V. It is supplied as a solder‑type header and is RoHS‑compliant.
The sheet lists accessories such as marker cards, plug adapters, and various plug variants, and provides drawing details for drilling and solder pad geometry. Contact information for Phoenix Contact is included at the end.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 3 |
| Pin dimensions | 0.8 × 0.8 mm |
| Hole diameter | 1.2 mm |
| Weight per piece | 0.004272 kg |
| Color | green |
| Assembly | Soldering |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 8 A.
The pitch of the terminal block is 3.81 mm.
It has three positions.
