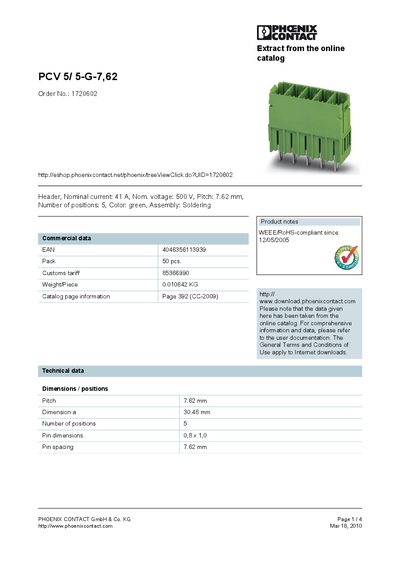

This document describes the features and characteristics of the PCV 5/ 5-G-7,62 product from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, pin dimensions, etc.
The PCV 5/5-G-7,62 is a 5‑position, green‑colored connector with a 7.62 mm pitch, designed for solder‑type assembly. It is rated for a nominal current of 41 A and a nominal voltage of 500 V, with pin dimensions of 0.8 × 1.0 mm.
The product is supplied in packs of 50 pieces, each weighing 0.010642 kg, and carries UL and CUL certifications. Detailed dimensions, drilling plans, and certification data are provided in the sheet, and ordering information can be accessed via the Phoenix Contact e‑shop.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Color | green |
| Assembly type | Soldering |
| Pin dimensions | 0.8 x 1.0 mm |
| Weight per piece | 0.010642 kg |
| Pack size | 50 pcs |
The connector is rated for a nominal current of 41 A.
It has five positions.
The pitch is 7.62 mm.
