MCVW 1,5/10-ST-3,5 is a plug component from the German brand Phoenix Contact. It is a component with a rated current of 8A, a rated voltage of 160V, a pitch of 3.5mm and 10 positions. The connection method is screw connection.

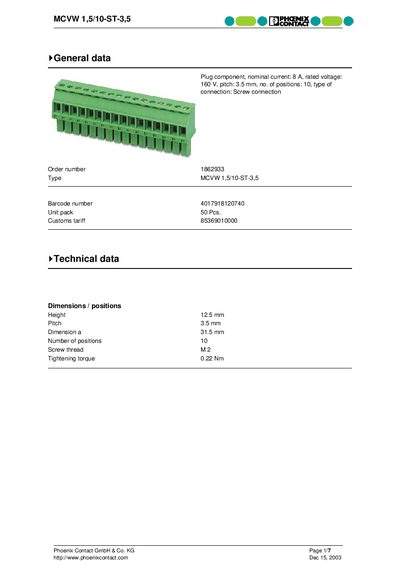

This handbook presents the general data and technical specifications of the MCVW 1,5/10-ST-3,5 terminal block, including nominal current, rated voltage, pitch, dimensions and mounting details. It also lists certificates, drawings and the applicable standards.
Additional sections describe compatible accessories such as marker pens and cards, related header products, and contact information for Phoenix Contact. The document is intended for engineers and purchasing personnel who need quick reference data for this terminal block. This manual is written in German.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 10 |
| Height | 12.5 mm |
| Length (dimension a) | 31.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
It provides 10 positions for connections.
The pitch between contacts is 3.5 mm.
The overall height is 12.5 mm.
