The document provides information about a 10-pin green connector, including its model number, specifications, color, and purchasing information.

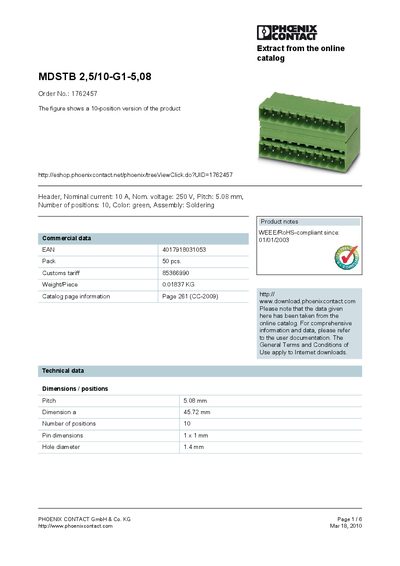

The MDSTB 2,5/10-G1-5,08 is a 10‑position terminal block with a 5.08 mm pitch, nominal current of 10 A, nominal voltage of 250 V, green colour and soldering assembly. It complies with WEEE/RoHS regulations since 01/01/2003.
The handbook lists detailed technical specifications, certification approvals (CB, CSA, CUL, GOST, UL, VDE‑PZI), accessory part numbers, additional product variants, and mechanical drawing information. Contact details for Phoenix Contact and ordering information are also included.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 10 |
| Color | green |
| Assembly | Soldering |
| Weight per piece | 0.01837 kg |
| Length (dimension a) | 45.72 mm |
The terminal block is rated for a nominal current of 10 A.
It has 10 positions.
The pitch is 5.08 mm.
Yes, it is RoHS compliant since 01/01/2003.
