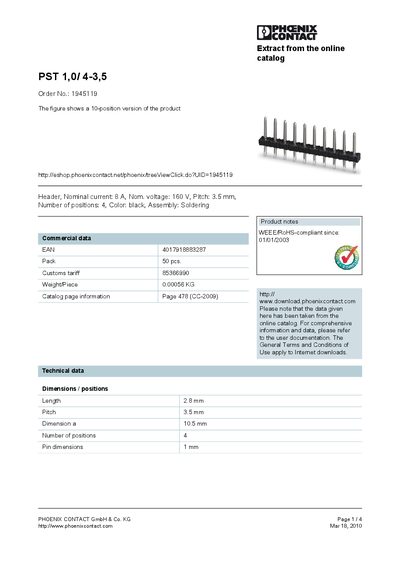

The document introduces a header connector produced by PHOENIX CONTACT GmbH & Co. KG. It has a rated current of 8A and a rated voltage of 160V. It is suitable for soldering assembly and has a black color. It has 4 positions.
The PST 1,0/4-3,5 is a 4‑position, 3.5 mm pitch connector offered by Phoenix Contact. It is supplied in packs of 50 pieces and complies with WEEE/RoHS regulations since 01/01/2003.
The datasheet provides detailed technical data such as nominal current (8 A), nominal voltage (160 V), mechanical dimensions, weight, and certification information (CUL, CCA, GOST, SEV, UL). Diagrams for drilling plans and solder pad geometry are also included.
| Pitch | 3.5 mm |
|---|---|
| Number of positions | 4 |
| Length | 2.8 mm |
| Dimension a | 10.5 mm |
| Pin dimensions | 1 mm |
| Weight per piece | 0.00056 kg |
| EAN | 4017918883287 |
| Pack quantity | 50 pcs |
| Certifications | CCA, CUL, GOST, SEV, UL |
| WEEE/RoHS compliance date | 01/01/2003 |
It has 4 positions.
It is certified by CCA, CUL, GOST, SEV and UL.
