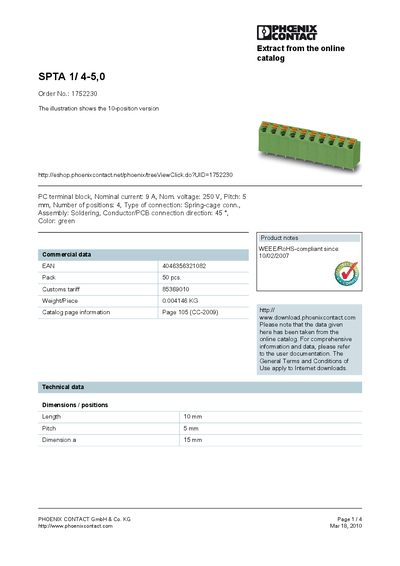

This document is about the PC terminal block SPTA 1/ 4-5,0 from PHOENIX CONTACT GmbH & Co. KG. The product has a rated current of 9A and a rated voltage of 250V. It is suitable for soldering assembly and uses spring-cage connections. The color is green. The product is WEEE/RoHS-compliant.
This document provides the technical data, electrical ratings, mechanical dimensions and connection details for the Phoenix Contact SPTA 1/4-5,0 terminal block. It includes information such as nominal current, voltage, pitch, number of positions and material specifications.
Additional sections list certification approvals (CUL, UL), ordering information (Order No. 1752230, EAN 4046356321082), weight, and contact details for Phoenix Contact GmbH & Co. KG.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 4 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB connection direction | 45° |
| Color | Green |
| Weight per piece | 0.004146 kg |
| EAN | 4046356321082 |
| Order number | 1752230 |
| Certifications | CUL, UL |
It is rated for a nominal current of 9 A.
The terminal pitch is 5 mm.
The terminal block provides 4 positions.
It is certified according to CUL and UL standards.
