This document presents the technical and commercial data of the plug component produced by Phoenix Contact, including rated current, rated voltage, dimensions, etc.

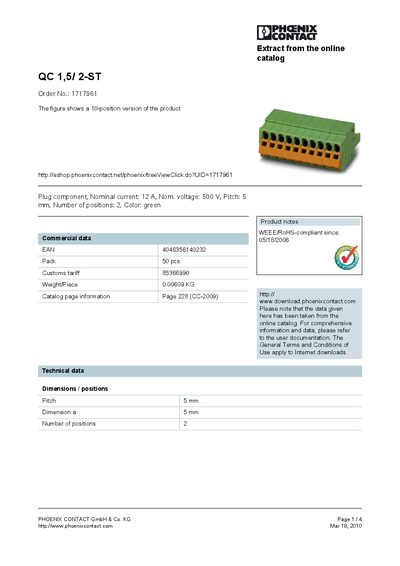

The QC 1,5/2-ST is a compact plug component from Phoenix Contact, featuring a 5 mm pitch and a green housing. It is offered in a 2‑position version, with a nominal current rating of 12 A and a nominal voltage of 500 V.
The datasheet lists detailed technical data including surge voltage ratings up to 6 kV, various voltage classes (630 V, 1000 V), conductor cross‑section ranges, and certifications such as CUL, UL, and EN‑VDE. Physical dimensions, weight (0.00609 kg per piece), and packaging information are also provided.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 5 mm |
| Number of positions | 2 |
| Weight per piece | 0.00609 kg |
The QC 1,5/2-ST is rated for a nominal current of 12 A.
The plug has a pitch of 5 mm.
It is available with 2 positions.
