GMSTB 2,5/ 2-ST-7,62 is a plug component manufactured by PHOENIX CONTACT. Its rated current is 12 A, rated voltage is 400 V, pitch is 7.62 mm, number of positions is 2, connection type is screw connection, and color is green.
The GMSTB 2,5/2-ST-7,62 is a green‑colored screw‑connection terminal block with a 7.62 mm pitch, designed for 12 A nominal current and 400 V nominal voltage. It is supplied in packs of 50 pieces and complies with WEEE/RoHS regulations.

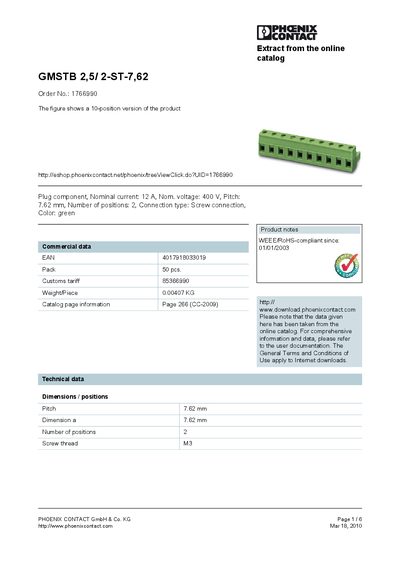

The sheet lists detailed technical data such as tightening torque, rated surge voltages, dimensions, and certification approvals (CSA, CUL, UL). Additional accessories, marking codes, and a dimensioned drawing are also included for reference.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.00407 kg |
| Pack quantity | 50 pcs |
| EAN | 4017918033019 |
| WEEE/RoHS compliance date | 01/01/2003 |
The nominal current is 12 A.
It has 2 positions.
The recommended tightening torque is between 0.5 Nm (minimum) and 0.6 Nm (maximum).
