The product is the FKC 2,5/ 3-ST-5,08 connector from PHOENIX CONTACT, with a rated current of 12A, rated voltage of 250V, pitch of 5.08mm, spring-cage connection and green color.
The FKC 2,5/3-ST-5,08 is a 3‑position, green‑colored terminal block with a 5.08 mm pitch. It is designed for a nominal current of 12 A and a nominal voltage of 250 V, featuring a spring‑cage connection type.

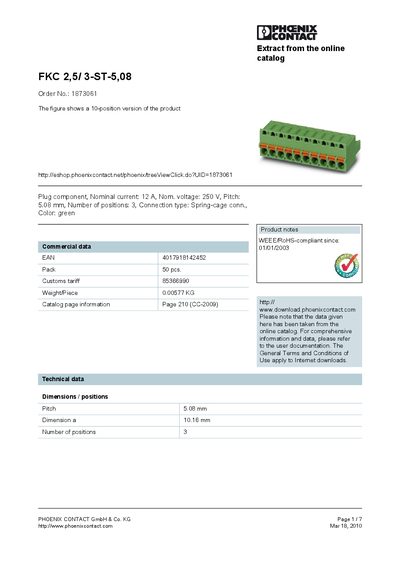

The leaflet provides dimensions, certifications, accessories, and mounting options, along with ordering information and contact details for Phoenix Contact.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Connection type | Spring‑cage |
| Color | green |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 12 A.
It has three positions.
The pitch is 5.08 mm.
Yes, it has been RoHS‑compliant since 01/01/2003.
