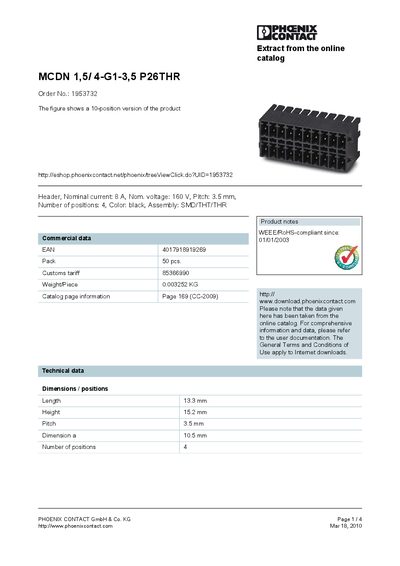

MCDN 1,5/ 4-G1-3,5 P26THR is a product of PHOENIX CONTACT, with a nominal current of 8 A, a nominal voltage of 160 V, a pin pitch of 3.5 mm, 4 pins, a color of black, and a SMD/THT/THR package.
The MCDN 1,5/4‑G1‑3,5 P26THR is a compact terminal block designed for 8 A nominal current and 160 V nominal voltage applications. It features a 3.5 mm pitch and is available in a 4‑position configuration.
Key data include a length of 13.3 mm, height of 15.2 mm, and a weight of 0.003252 kg per piece. The product complies with WEEE/RoHS regulations since 01/01/2003 and is supplied with various marker cards and adapters listed in the accessories section.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Length | 13.3 mm |
| Height | 15.2 mm |
| Weight per piece | 0.003252 kg |
| EAN | 4017918919269 |
| WEEE/RoHS compliance date | 01/01/2003 |
It is available with four positions.
The pitch is 3.5 mm.
