This is a description of the FK-MC 0,5/ 2-ST-2,5 product. It contains information such as product images, parameters, model, brand, etc.
The FK-MC 0,5/2-ST-2,5 is a 2‑position spring‑cage terminal block designed for 4 A nominal current and 100 V nominal voltage. It features a 2.5 mm pitch, green housing and is RoHS‑compliant since 01/01/2003.

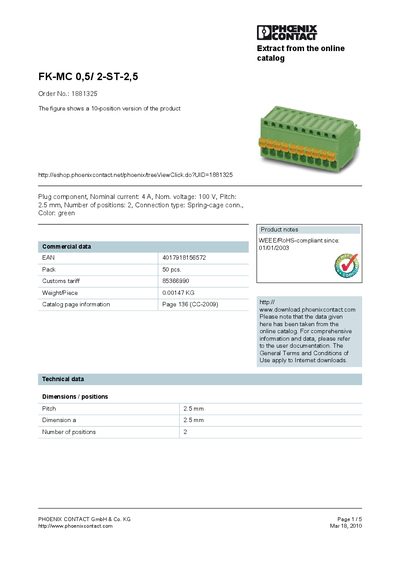

The handbook lists detailed electrical ratings, mechanical dimensions, available accessories such as marker cards and screwdrivers, and certification marks (CB, CUL, GOST, UL, VDE‑PZI). It also includes a wiring diagram and contact information for Phoenix Contact.
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 100 V |
| Pitch | 2.5 mm |
| Number of positions | 2 |
| Connection type | Spring‑cage |
| Weight per piece | 0.00147 kg |
| EAN | 4017918156572 |
| Nominal voltage Un | 125 V |
| AWG/kcmil range | 28‑20 |
| WEEE/RoHS‑compliant since | 01/01/2003 |
The nominal current is 4 A.
It has 2 positions.
The pitch is 2.5 mm.
It is certified by CB, CUL, GOST, UL and VDE‑PZI.
