MCVW 1,5/ 9-ST-3,5 is a Phoenix Contact connector with a nominal current of 8A, a rated voltage of 160V, a screw connection and 9 connection positions. It has a height of 12.5mm and a pitch of 3.5mm.

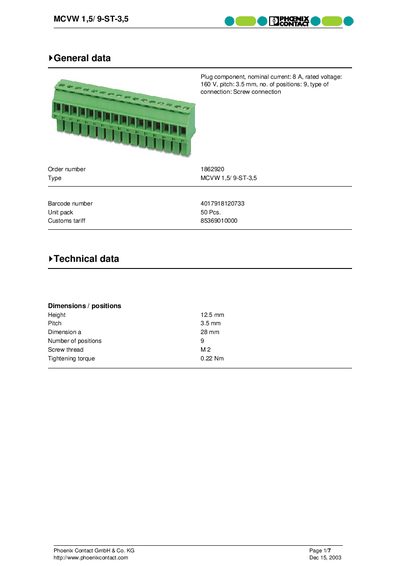

This handbook describes the MCVW 1,5/9-ST-3,5 terminal block, a 9‑position screw‑connection component with a nominal current of 8 A and a rated voltage of 160 V. It lists general data, technical specifications, dimensions, and required tightening torque.
Additional sections cover certifications (UL, CUL), drawing references, accessory items such as marker pens and cards, and related product variants with different mounting methods. Contact information for Phoenix Contact and ordering details are also included.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 9 |
| Height | 12.5 mm |
| Dimension a | 28 mm |
| Tightening torque | 0.22 Nm |
The nominal current is 8 A.
It has 9 positions.
A tightening torque of 0.22 Nm is specified.
The pitch is 3.5 mm.
