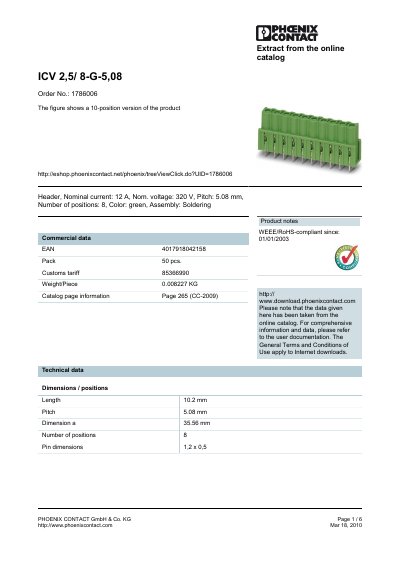

The document introduces the product ICV 2.5/ 8-G-5.08 from PHOENIX CONTACT GmbH & Co. KG. The product has a rated current of 12A, a rated voltage of 320V, a pitch of 5.08mm, 8 positions, green color, and soldering assembly. The dimensions of the product are 10.2mm x 35.56mm, and the pin dimensions are 1.2mm x 0.5mm. The hole diameter is 1.4mm. The product is WEEE/RoHS compliant. The document also provides more detailed technical data.
The ICV 2,5/8-G-5,08 is a green‑colored terminal block designed for DIN‑rail or solder‑mount installation. It provides 8 positions with a 5.08 mm pitch and is suitable for industrial electrical connections.
Key specifications include a nominal current of 12 A, nominal voltage of 320 V, and a compact size (10.2 mm length). The product complies with multiple certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI) and is available with various accessories such as guide rails and keying profiles.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5.08 mm |
| Number of positions | 8 |
| Color | green |
| Insulating material | PA |
| Rated surge voltage (III/3) | 4 kV |
| Weight per piece | 0.008227 kg |
| Length | 10.2 mm |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 12 A.
The pitch between terminals is 5.08 mm.
It provides 8 positions.
