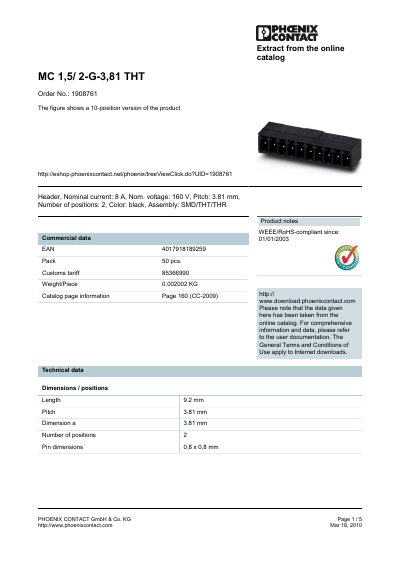

MC 1,5/ 2-G-3,81 THT is a connector from Phoenix Contact. It has an rated current of 8 A, rated voltage of 160 V, pitch of 3.81 mm, pin dimensions of 0.8 x 0.8 mm and assembly of SMD/THT/THR.
The MC 1,5/2-G-3,81 THT is a compact terminal block designed for soldering (THT) applications. It features a 3.81 mm pitch and is available in a 2‑position version with a nominal current of 8 A and a nominal voltage of 160 V.
Key data include a hole diameter of 1.4 mm, insulating material PA‑GF, UL 94 V0 inflammability class, and certifications such as CB, CUL, GOST, UL and VDE‑PZI. The sheet also lists accessories, part numbers, and mechanical drawings for proper installation. This manual is written in Chinese.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Rated voltage (II/2) | 250 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Pitch | 3.81 mm |
| Number of positions | 2 |
| Hole diameter | 1.4 mm |
| Insulating material | PA‑GF |
| Inflammability class | UL 94 V0 |
| Weight per piece | 0.002002 kg |
The nominal current rating is 8 A.
The terminal pitch is 3.81 mm.
It has 2 positions.
It is certified by CB, CUL, GOST, UL and VDE‑PZI.
