This is a PST 1,3/ 3-LV-5,0 header from PHOENIX CONTACT. It has a nominal current of 14A and a nominal voltage of 250V. The pitch is 5mm and the number of positions is 3. It is black in color.
The PST 1,3/3-LV-5,0 is a 3‑position, 5 mm pitch connector designed for 14 A nominal current and 250 V nominal voltage. The sheet provides key dimensions, electrical ratings, and certification details for the product.

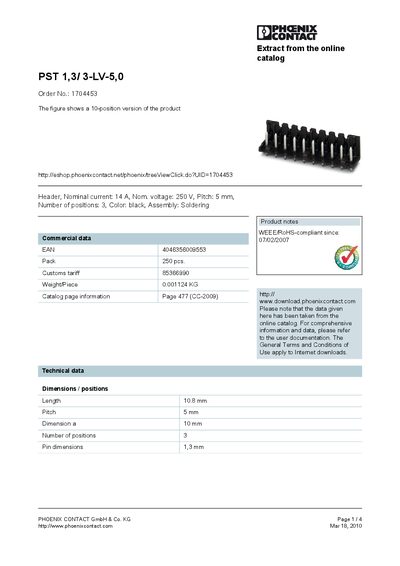

The data is extracted from Phoenix Contact’s online catalog (page 477, CC‑2009) and includes ordering information, weight, and compliance notes. For full documentation see the user manuals linked on the Phoenix Contact website.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Length | 10.8 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.001124 kg |
| EAN | 4046356009553 |
| WEEE/RoHS compliance date | 07/02/2007 |
The connector is rated for a nominal current of 14 A.
It has three positions.
The pitch is 5 mm.
The product is listed on catalog page 477 (CC‑2009).
