PST 1,0/ 5-3,5 is a header produced by PHOENIX CONTACT. It has a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.5 mm, a pin diameter of 1 mm, and a black color. It can be soldered.
The PST 1,0/5-3,5 is a 5‑position, 3.5 mm pitch connector offered by Phoenix Contact. It is designed for solder‑type assembly and supports a nominal current of 8 A at 160 V.

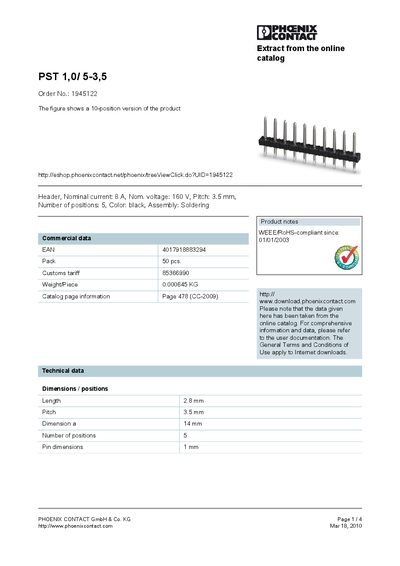

The sheet provides commercial data, technical parameters, dimensional drawings and certification information extracted from the Phoenix Contact online catalog. It also lists packaging, weight and regulatory compliance details.
| Nominal current | 8 A (depends on the plug used) |
|---|---|
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Length | 2.8 mm |
| Dimension a | 14 mm |
| Pin dimensions | 1 mm |
| Weight per piece | 0.000645 kg |
| EAN | 4017918883294 |
| Pack size | 50 pcs |
| Inflammability class | UL 94 |
| Certifications | CCA, CUL, GOST, SEV, UL |
The connector is rated for a nominal current of 8 A, depending on the plug used.
It has five positions.
The pitch is 3.5 mm.
