This product is a green plug component with a nominal current of 8A, a nominal voltage of 160V, a pitch of 3.81mm, 2 slots and a spring clamp connection.
The FK-MCP 1,5/2-ST-3,81 is a 2‑position terminal block with a 3.81 mm pitch, rated for 8 A and 160 V. It is supplied in a green housing and is designed for press‑in, screw or soldered connections.

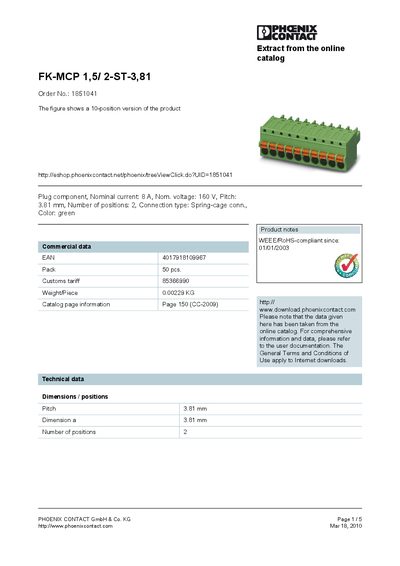

The leaflet lists detailed specifications, including weight, packaging, WEEE/RoHS compliance and certifications (CSA, CUL, UL, VDE). It also provides part numbers for accessories such as marker cards, tools and related terminal block variants.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 2 |
| Color | green |
| Weight per piece | 0.00229 kg |
| Packaging | Pack 50 pcs. |
| WEEE/RoHS compliance | since 01/01/2003 |
The terminal block is rated for a nominal current of 8 A and a nominal voltage of 160 V.
It has 2 positions with a pitch of 3.81 mm.
Yes, it is WEEE/RoHS‑compliant since 01/01/2003.
